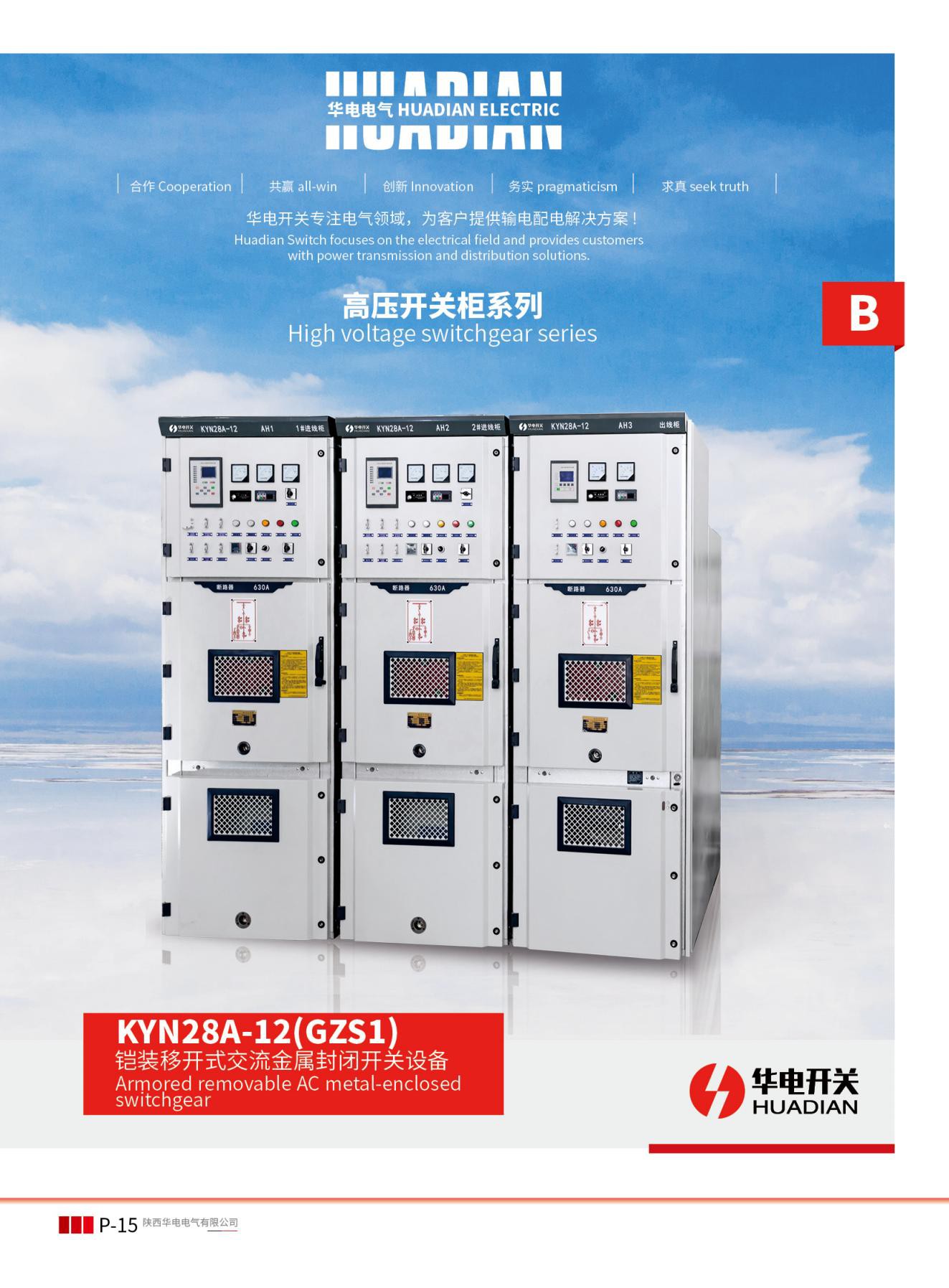

KYN28A-12(GZS1) Armored Removable AC Metal Enclosed Switchgear
Competitive rates, extensive inventory: High-quality armored switch solutions.
Top-tier quality, factory prices: Ready-to-ship KYN28A-12(GZS1) series.
Abundant stock, competitive pricing: Elevate projects with reliability.
Metal Switchgear: High stock levels, low prices, superior quality.
Introduction to KYN28A-12(GZS1) Armored Removable AC Metal Enclosed Switchgear by HD Switchgear
1. Basic Product Details: HD Switchgear introduces the KYN28A-12(GZS1) Armored Removable AC Metal Enclosed Switchgear, a cutting-edge solution designed for reliable power distribution in diverse industrial applications. This robust switchgear combines advanced technology with a modular design, ensuring ease of installation, maintenance, and optimal performance.
2. Product Standards: The KYN28A-12(GZS1) adheres to stringent international standards, demonstrating our commitment to delivering products of the highest quality and safety. It complies with IEC 62271-200 and GB3906 standards, ensuring reliability and conformity with industry norms.
3. Basic Parameters (Table 2):
| Parameter | Value |
|---|---|
| Rated Voltage (kV) | 12 |
| Rated Current (A) | Customizable |
| Rated Frequency (Hz) | 50/60 |
| Rated Short-Time Withstand Current (kA) | 25 |
| Rated Peak Withstand Current (kA) | 63 |
| Rated Short-Circuit Breaking Current (kA) | 20 or 25 |
| Mechanical Life | 10,000 operations |
|
Item |
Unit |
Data |
|
|
equipped with breaker |
|||
|
ZN63A-12(VS1) |
VD4 |
||
|
Rated voltage |
kV |
12 |
12 |
|
1min working frequency endurable voltage |
kV |
42 |
42 |
|
Shock endurable rated voltage |
kV |
75 |
75 |
|
Rated frequency |
Hz |
50 |
50 |
|
Rated current |
A |
630,1250,1600,2000,2500,3150,4000,5000 |
|
|
Branch bus bar rated current |
A |
630,1250,1600,2000,2500,3150,4000,5000 |
|
|
Rated short time endurable current(virtual value) |
kA |
16,20,25,31.5,40,50 |
16,20,25,31.5,40,50 |
|
Rated peak endurable voltage |
kA |
40,50,63,80,100,125 |
40,50, 63, 80,100,125 |
|
Rated short-circuit duration |
S |
4 |
|
|
Protection degree |
The shell is IP4X, and the compartment door and handcart door are IP2X when they are opened. | ||
|
Quality |
kg |
700~1200 |
700~1200 |
4. Product Attributes:
Modular Design: The armored removable design allows for easy installation, maintenance, and component replacement, enhancing operational flexibility.
Safety Features: Equipped with advanced safety mechanisms, including interlocking and insulation monitoring, ensuring a secure operating environment.
Versatility: Suited for various applications, from industrial power distribution to critical infrastructure.
5. Product Functions: The KYN28A-12(GZS1) switchgear serves as a central component in electrical systems, providing reliable switching, control, and protection functions. It ensures the efficient and safe distribution of electrical power.
6. Features:
Compact Design: Space-saving design while maintaining high functionality.
Advanced Protection: Offers comprehensive protection against overcurrents, short circuits, and other electrical faults.
Remote Control: Optional remote control capabilities for enhanced operational convenience.
7. Advantages and Highlights:
Robust Construction: Built with high-quality materials, ensuring durability and a long service life.
Ease of Maintenance: The armored removable design simplifies maintenance and allows for easy component replacement.
Customization: Available in various configurations to meet specific project requirements.
8. Application Areas: The KYN28A-12(GZS1) is well-suited for power distribution in industries such as manufacturing, energy, and infrastructure. Its reliable performance makes it ideal for applications where uninterrupted power supply is critical.
9. OEM Services: HD Switchgear provides comprehensive OEM services, delivering tailored solutions to meet individual client specifications. Our experienced team ensures that the KYN28A-12(GZS1) aligns perfectly with project requirements.
Company Profile
Shaanxi Huadian Electric Co., Ltd. is located in Baoji High-tech Development Zone, Shaanxi Province. It is a modern high-tech enterprise specializing in the production of vacuum circuit breakers integrating R&D, manufacturing and sales.
The company has a professional R&D team and new product laboratory, and maintains a good cooperative relationship with domestic scientific research institutions and colleges and universities in the research and development of new products.

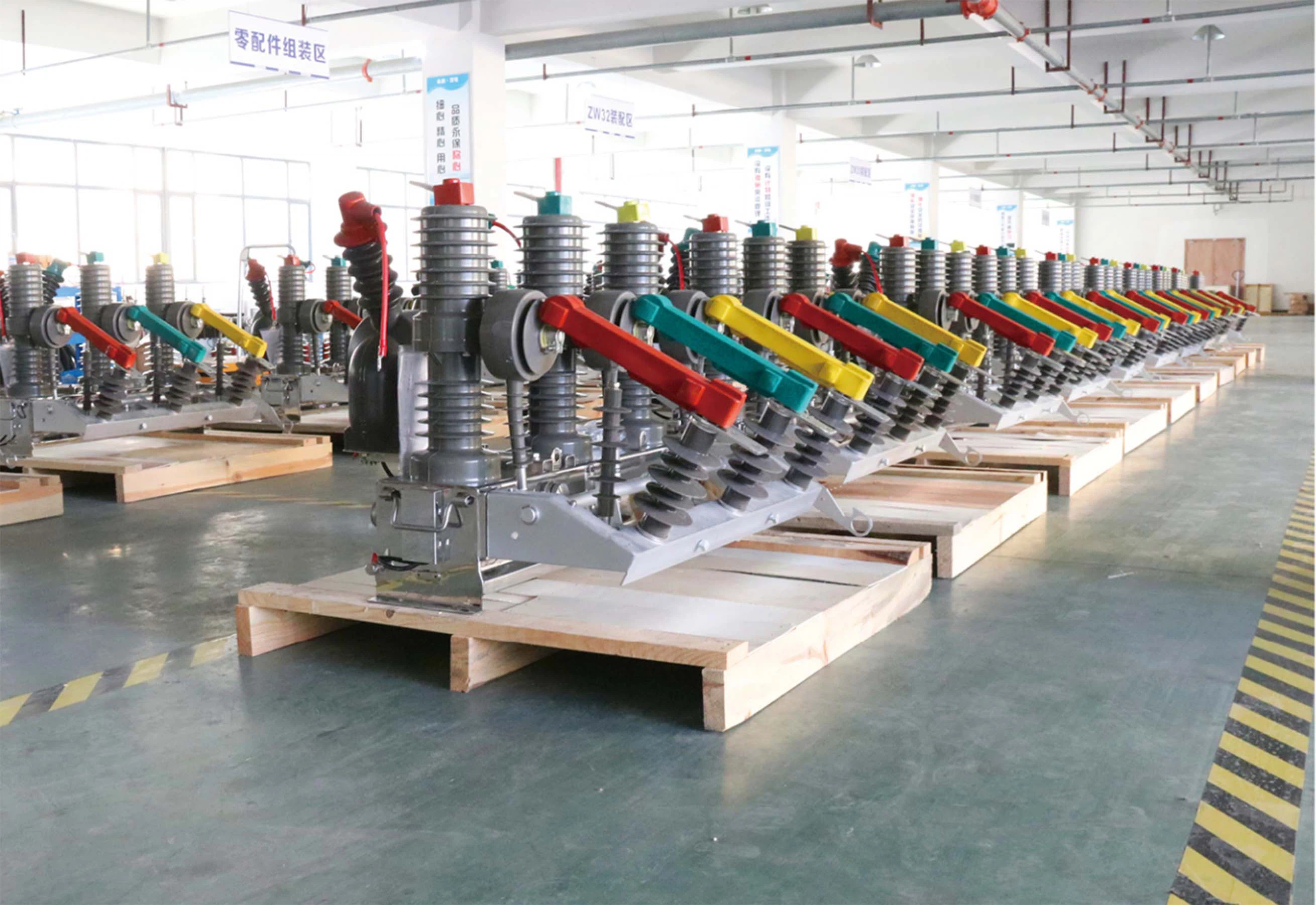

Production Workshop
Production Workshop
There is the the best production workshop of the vacuum circuit breaker in the Country.
An efficient production line, conscientious works and strict management, which is provide the most reliable product in the world.
Prodect qualification
Prodect qualification
Strict quality management system is the reason why the products are widely used in all over the country.
Certifications
Delibery and Payment
We support different shipping methods to various countries and accept different kinds of payment
-
Fast and Reliable
-
Safe and Eiffective
10. FAQs:
What certifications are provided? We offer various standard and customized certifications, ensuring compliance with industry standards.
What is the delivery time? We prioritize fast delivery to meet project timelines.
Do you support testing? Yes, we provide complete test reports for the KYN28A-12(GZS1) switchgear.
11. Material Properties Highlight: The KYN28A-12(GZS1) incorporates high-quality materials in its construction, including robust metals for the enclosure and advanced insulating materials. This ensures resilience against environmental factors and extends the lifespan of the switchgear.
12. Final Detail: As a professional manufacturer and supplier, HD Switchgear guarantees excellence in the KYN28A-12(GZS1) switchgear. We provide various certifications, complete test reports, and support OEM requirements. For inquiries, please contact austinyang@hdswitchgear.com.
In conclusion, the KYN28A-12(GZS1) stands as a testament to HD Switchgear's commitment to delivering reliable, innovative, and advanced solutions for the evolving needs of the electrical industry.
