KYN28-12 Metalclad AC Enclosed Switchgear Cabinets
1. Fully enclosed structure.
2. Separated and independent compartment.
3. Fast closing earthing switch.
4. High standard safety protection.
5. Easy to maintainace and replace the parts
6. Have the front and rear observation windows in the door panel, so the internal parts of the cabinets can be clearly viewed.
7. ire is neat and convenient for inspection.
KYN28-12 Indoor AC metal enclosed drawout circuit breaker panel is applied to 3-phase AC 50Hz/3-10kV network for receiving and distributing electric power and for application of control, monitor and protection as well. It can be arranged for single busbar and single busbar sectionalizing system. The circuit breaker panel was designed and manufactured in accordance with GB3906. And this kind of switchgear cabinets enjoyed good popularity in our customers all over the world. Huadian Brand, Your Reliable Choice.

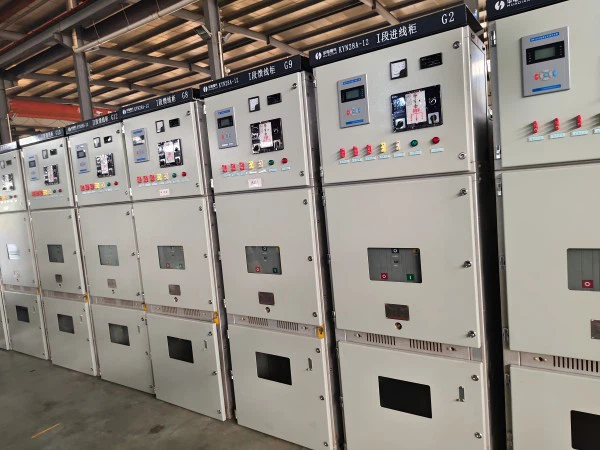

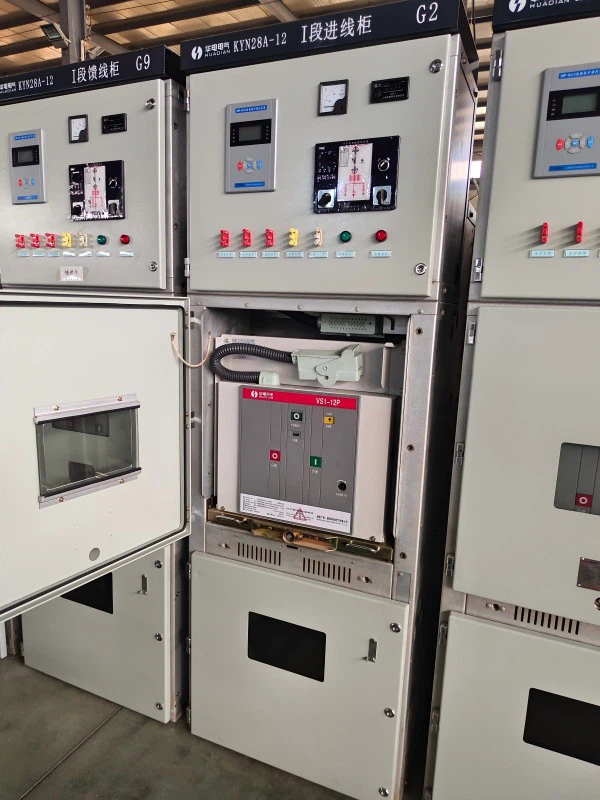

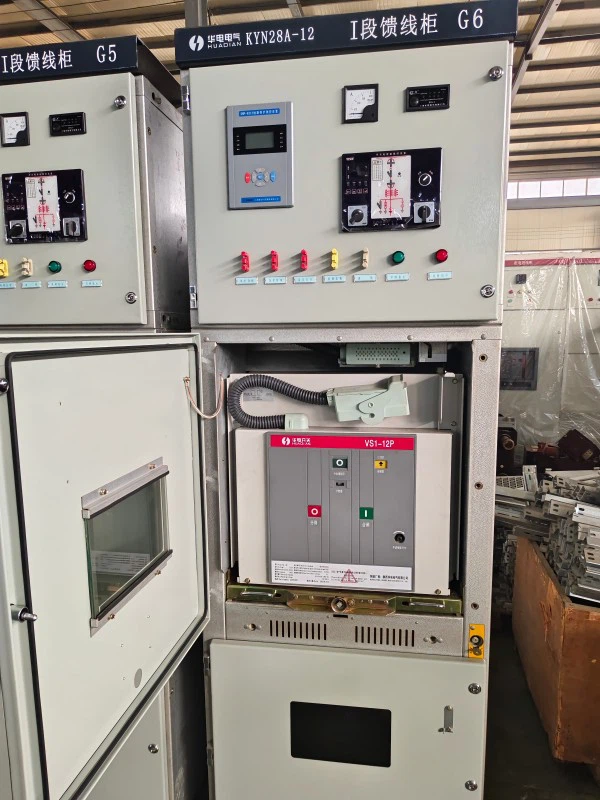

Cabinets Pictures

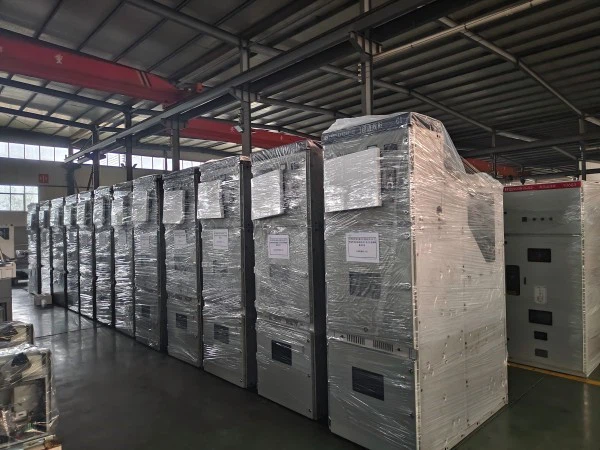

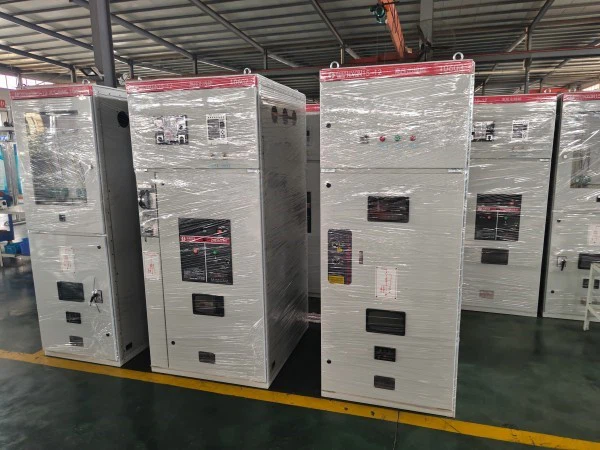

Package
Certification
Product Parameters
| Brand Name | Huadian |
| Model Number | KYN28A-12 |
| Color | Negotiable |
| Reted Voltage | 6KV/10KV/12KV |
| Rated Current | 630A/1250A |
| Rated frequency | 50HZ/60HZ |
| Warranty | 18 Months |
| Standards | IEC60298,GB3906 |
| Dimensions (Width x Depth x Height) | 800(1000)mm x 1500(1660)mm x 2300mm |
| Abroad Techinical Support | Yes |
After Sales Service
1.Our company provides you with project design and process design, and designs and manufactures products according to your equipment purchase plan and specific needs. And train technical and operating personnel for you. Of course, sending our engineer abroad is also available.
2.The newly purchased products are provided with online assistance for installation and debugging. The products are under the lifelong service system. If problems occur in normal use, we will provide solutions within one working day after receiving user's feedback. We will try our best to get the product up and running as soon as possible. And there are regular visits by professional technicians to ensure the long-term, safe and reliable use of our products.
3.We use quality authentic materials, process and manufacture in strict compliance with ISO9001:2000 international quality management to ensure the quality of excellence and the smooth installation!
