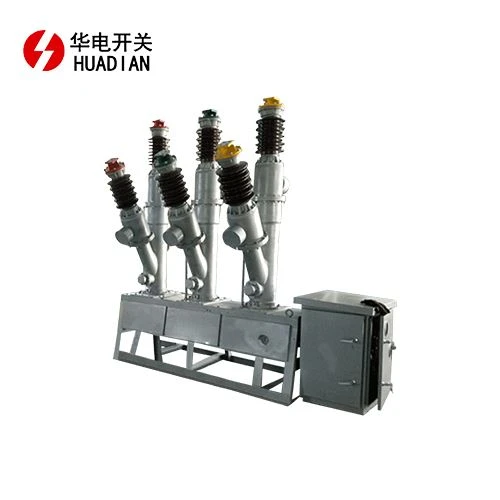

LW8-40.5 Outdoor Sulfur Hexafluoride Circuit Breaker

Overview:

LW8-40.5 Outdoor Sulfur Hexafluoride Circuit Breaker a three-phase AC 50Hz outdoor high voltage electrical equipment; suitable for the control and protection of rated voltage 40.5kv transmission and distribution system; can also be used to contact circuit breakers and open and close capacitor banks; and can be attached to the current transformer for measurement and protection

Structure:

LW8-40.5 Outdoor Sulfur Hexafluoride Circuit Breaker is a porcelain column structure, three-phase separate, all have independent pressure gas type arc extinguishing chamber, and the three-phase gas is connected through the copper pipe.

LW8-40.5 Outdoor Sulfur Hexafluoride Circuit Breaker is composed of pillar porcelain bottle, current transformer, arc extinguisher, adsorbor, transmission box, connecting rod, chassis and spring actuation mechanism.

Advantage:

a. Excellent breaking performance, the use of compressed air arc extinguisher, short arc burning time, long electrical life;

b. Under the rated voltage, 25 kA is continuously interrupted 20 times without maintenance, and the sulfur hexafluoride gas is not replaced;

c. Reliable insulation, air pressure at zero gauge pressure can withstand 40.5kv 10 minutes;

d. High mechanical reliability, strong closing ability, frequent operation;

e. Opening and closing capacitor bank current 400 amps without re-ignition;

f. Cut the long line 25, 50 km without rekindling;

g. Simple structure, small size, no maintenance cycle is long.

Normal use conditions:

Altitude:not more than 2500;

Rice; High prototype 4000 meters;

Ambient temperature: -30 °C ~ +40 °C (special requirements -40 °C - +40 °C);

Relative humidity: daily average is not more than 95%, monthly average is not more than 90% (25 °C);

Wind speed: not more than 35 m / s; Contamination grade III;

The climbing distance of the porcelain sleeve is 1050mm (1320mm) (the nominal creepage ratio is not less than 25 mm/kv).

Sunshine: 0.1w/cm2 ;

Ice covering: 10mm (max)

Seismic conditions: vertical acceleration 0.3g;

Horizontal acceleration 0.15g(max)

There are no flammable substances, explosion hazards, chemical corrosion and severe vibrations.

The main technical parameters of circuit breakers：

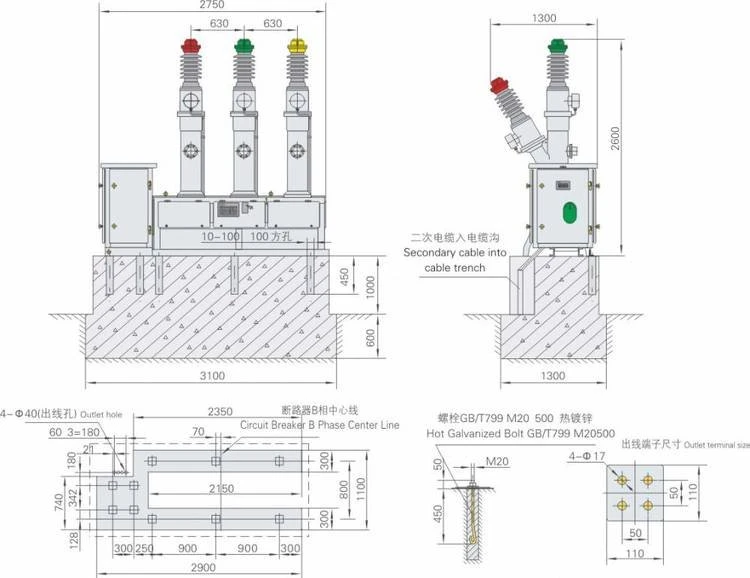

Product outline and installation dimensions：

（Unit:mm）
