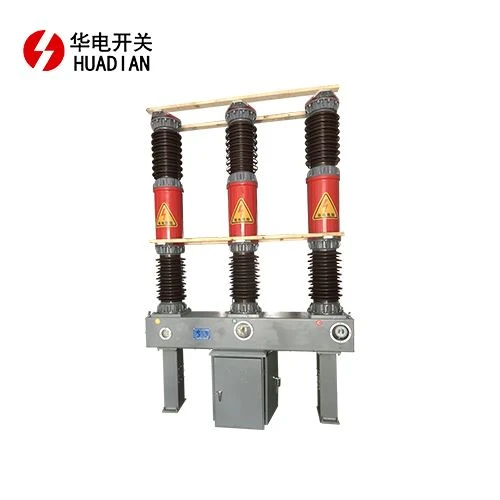

LW24-40.5 Outdoor Sulfur Hexafluoride Circuit Breaker

Overview:

LW24-40.5 Outdoor Sulfur Hexafluoride Circuit Breaker is a three-phase AC 50 Hz outdoor high voltage electrical equipment; suitable for the control and protection of rated voltage 40.5kV transmission and distribution system; can also be used to connect circuit breakers and open and close capacitor groups; and can be attached to the current transformer for measurement and protection.

Advantage:

1. Excellent breaking performance, the use of compressed air type arc extinguisher, short arc burning time, long electrical life, continuous interruption at rated voltage 25 kA 20 times without maintenance, do not replace sulfur hexafluoride gas.

2. Reliable insulation, air pressure can withstand 40.5KV for 10 minutes at zero gauge pressure.

3. High mechanical reliability, strong closing ability, frequent operation.

4. The current of the opening and closing capacitor bank is 400 amperes without re-ignition.

5. Cut the long line 25, 50 kilometers without rekindling.

6. Simple structure, small size, no maintenance cycle is long.

Normal use conditions:

a. Altitude: not more than 2500; Rice;

b. High prototype 4000 meters;

c. Ambient temperature: -30°C—+40°C (special requirements -40°C—+40°C);

d. Relative humidity: daily average is not more than 95%, monthly average is not more than 90% (25 °C);

e. Wind speed: not more than 35 meters / second;

f. Contamination grade III;

g. The climbing distance of the porcelain sleeve is 1050mm (1320mm) (the nominal creepage ratio is not less than 25 mm / kV).

h. Rizhao: 0.1w/cm2;

i. Ice covering: 10mm(MAX)

j. Seismic conditions: vertical acceleration 0.3g;

k. Horizontal acceleration 0.15g (max) without flammable substances, explosion hazards, chemical corrosion and severe vibration.

The main technical parameters of circuit breakers：

Product outline and installation dimensions：

（Unit:mm）

Shaanxi Huadian Electric Co., Ltd. advanced production equipment, perfect inspection equipment, strong technical force, with independent development of new products technical capabilities and complete quality management system, can customize a variety of special requirements, specifications of products for customers.

The quality of the products produced by the company is reliable, the appearance is beautiful, the structure is reasonable, and the service life is long. The product commonly used in electric power, railway, petrochemical industry and large, medium and small factories, engineering construction, power grid transformation, petroleum, chemical, metallurgy, coal mine, construction, mining and other fields.

The main products are supplied to the power supply bureau, power companies, power stations, power plants, mines, complete sets of companies and other large enterprises, all over the country, and used for large-scale wind power projects, and some products are exported to North Korea, Russia, Southeast Asia and other countries and regions.
